Product Description:
The A6P controller represents the pinnacle of our AC motor controller series, boasting a Cortex-M4F core processor operating at an impressive maximum frequency of 240MHz.
Continuing the tradition set by our A0P, A2P, and A4P series, the A6P controller features a dual-microprocessor architecture and exceptional compatibility with third-party motors/encoders. Its versatility extends to traction and pump applications across various industries, including cleaning machines, forklifts, sightseeing buses, club carts, and more.
Features:
-
Supports both Serial and CAN communication ports, enhancing its adaptability to a wide range of customer applications.
-
Features diverse peripheral connections, including analog and digital outputs, throttle outputs, isolated outputs, and small power outputs, ensuring comprehensive functionality.
-
Compatible with various optional encoder types, such as A/B incremental encoder, A/B/I absolute encoder, Sin/cos encoder, and more.
-
Utilizes advanced FOC control for ACIM/IPM(PMSM)/BLDC electric motors based on proprietary software algorithms.
-
Employs multiple proprietary and patented technologies, including 3-loop control for speed, position, and torque, as well as robust speed control mechanisms under variable loading conditions.
Safety and Reliability
-
Ensures structural and foundational safety and reliability through its dual-microprocessor architecture.
-
Obtained multiple significant certifications, including EN 13849-1:2015, EN1175-2020, and TSG-81: 2022, among others.
-
Adheres to industry best practices for safety measures, such as over-voltage cutback, thermal cutback, short-circuit protection, and more.
-
Features IP65 environmental sealing to guarantee stable and safe performance, even in harsh global conditions.
Specifications :
| Content | Parameters |
| Model | A6P-B501 |
| Nominal Input Voltage | 144 |
| 2 Min RMS Current Rating (Arms) | 500A |
| EncoderType | Incremental encoder, Absolute encoder, sin/cos encoder, rotary encoder (optional) |
| Communication | CAN / Serial |
Working Ambient
Temperature Range | -40℃~55℃ |
| Storage Ambient Temperature | -40℃~85℃ |
| Insulation Properties | Leakage current to ground ≤ 0.05mA (500VDC), insulation resistance > 10MΩ |
| Protection Grade | IP65 |
| Efficiency | ≥97% |
| Vibration Standard | GB/T2423 |
| Motor Control Method | Vector Control |
| Thermal Requirements | Installation in a well-ventilated environment, otherwise air-cooler must be added |
| Motor Type | ACIM/PMSM/IPM |
Typical Applications:

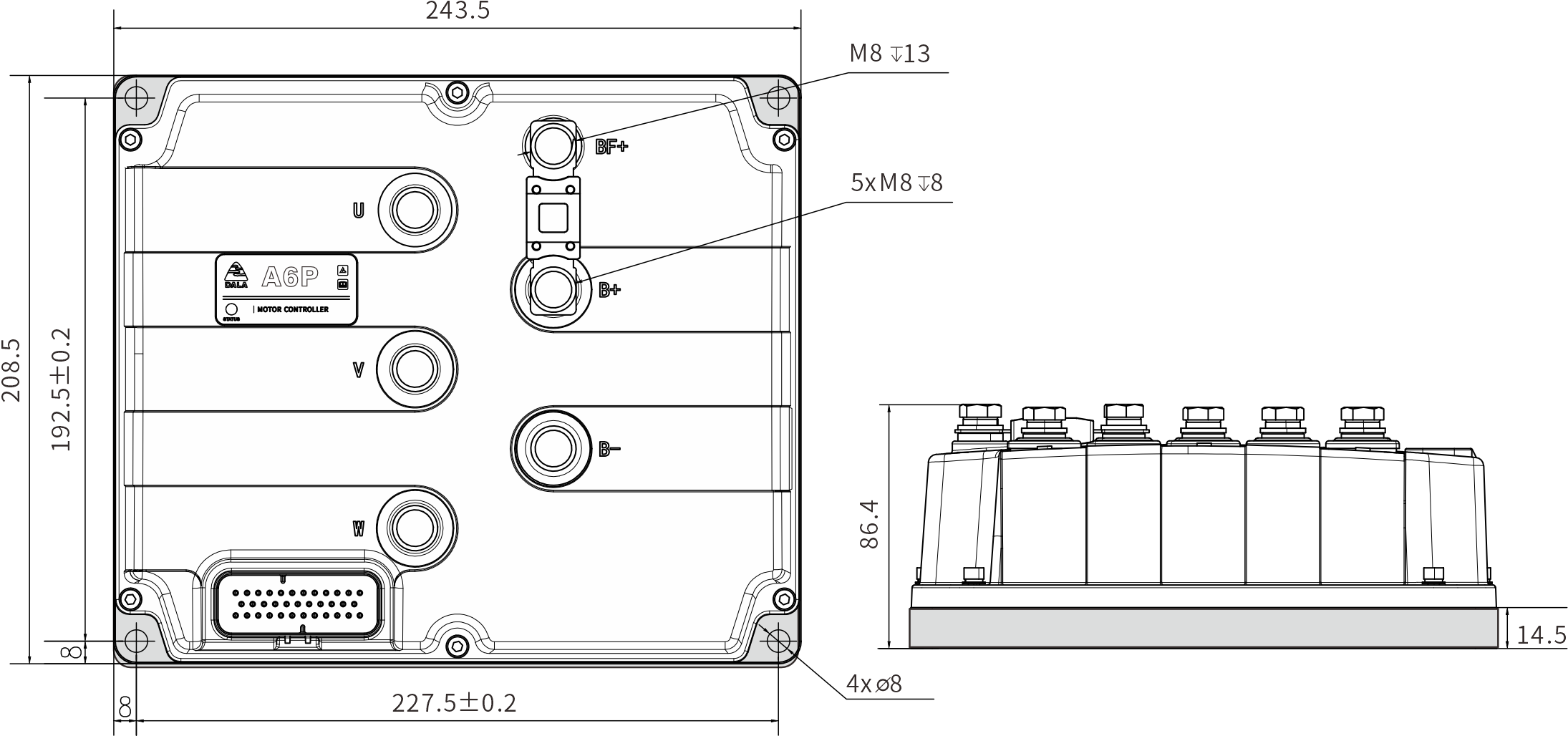

Dimensions:
